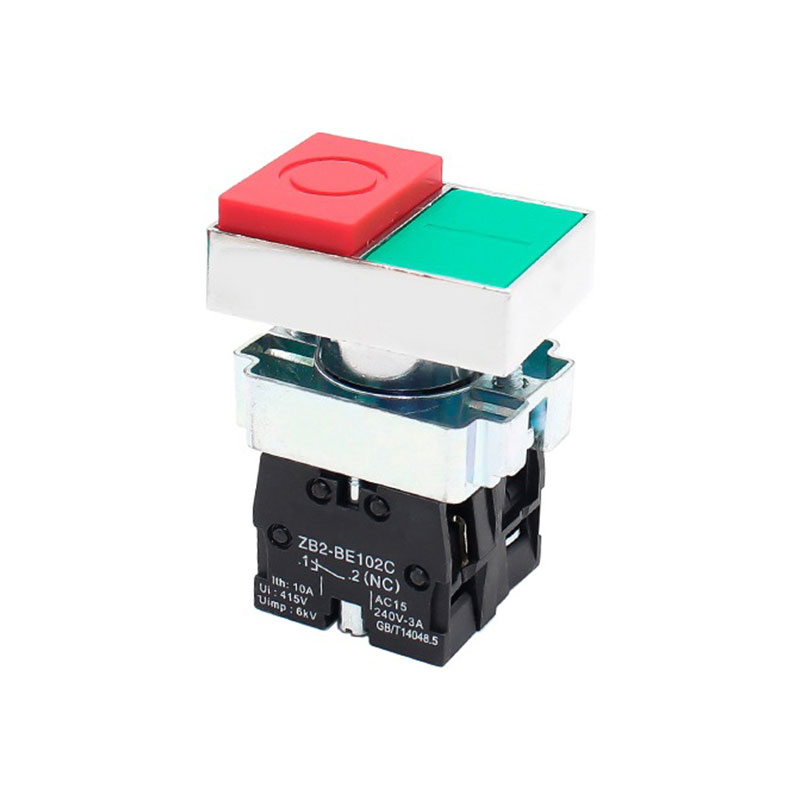

Double-headed spring return pushbutton switch including auxiliary contact blocks
Bezel material: metal
Mounting diameter: Φ22mm
Connection: by screws and by cables
| Model | Button | Color / Marking | Contact |
|---|---|---|---|
| XB2-BL8325 | 1 Flush + 1 Flush |
Green
Red |
1 NO + 1 NC |
| XB2-BL8425 | 1 Flush + 1 Projecting |
Green / I
Red / O |
1 NO + 1 NC |

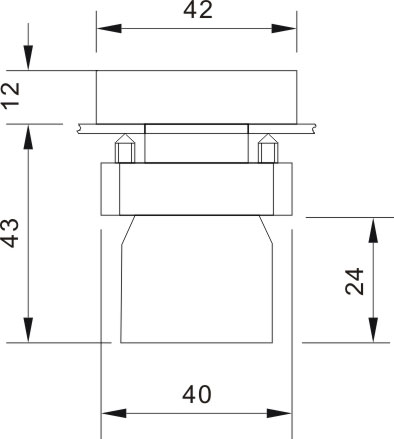

Dimensions
