Selector switch including auxiliary contact block(s)
Bezel material: metal
Mounting diameter: Φ22mm
Connection: by screws and by cables
| Model | Position | Operation type | Contact |
|---|---|---|---|
| XB2-BJ21 | 2-position | Stay put | 1 NO |
| XB2-BJ41 | 2-position | Spring return right to left | 1 NO |
| XB2-BJ25 | 2-position | Stay put | 1 NO + 1NC |
| XB2-BJ45 | 2-position | Spring return right to left | 1 NO + 1NC |
| XB2-BJ33 | 3-position | Stay put | 1 NO + 1NO |
| XB2-BJ53 | 3-position | 2 Spring return to center | 1 NO + 1NO |
| XB2-BJ73 | 3-position | 1 Spring return left to center | 1 NO + 1NO |
| XB2-BJ83 | 3-position | 1 Spring return right to center | 1 NO + 1NO |

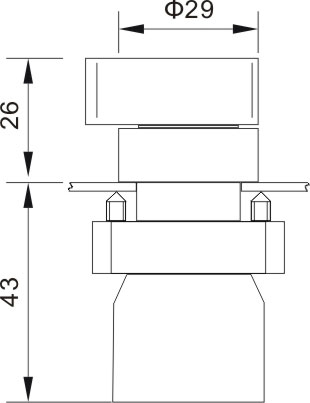

Dimensions
